If your Whirlpool ice dispenser stops working, it can be more than just an inconvenience. Many people rely on their refrigerator’s ice maker for daily use, especially in warmer climates or for entertaining guests. A broken ice dispenser can lead to frustration and even wasted food if the problem is connected to larger cooling issues. Luckily, most ice dispenser problems have clear causes and can often be fixed without professional help. Understanding how your Whirlpool ice dispenser works and the common reasons it might fail can save you both time and money.
How Whirlpool Ice Dispensers Work
To solve a problem, it helps to know how the system functions. The ice dispenser in a Whirlpool refrigerator is a combination of the ice maker, ice bin, dispenser motor, and control mechanisms. Here’s a simple breakdown:
- Ice maker: Produces ice cubes from water supplied by the water line.
- Ice bin: Stores the ice cubes until needed.
- Auger motor: Spins to move ice from the bin to the chute.
- Dispenser chute and flap: Guides ice out when you press the lever or button.
- Control panel and switches: Allow you to select ice or water and activate the system.
Each part must work together for ice to flow smoothly. If one part fails, the whole system can stop.
Common Reasons Your Whirlpool Ice Dispenser Stops Working
Many issues can cause an ice dispenser to malfunction. Some are simple, while others require more investigation.

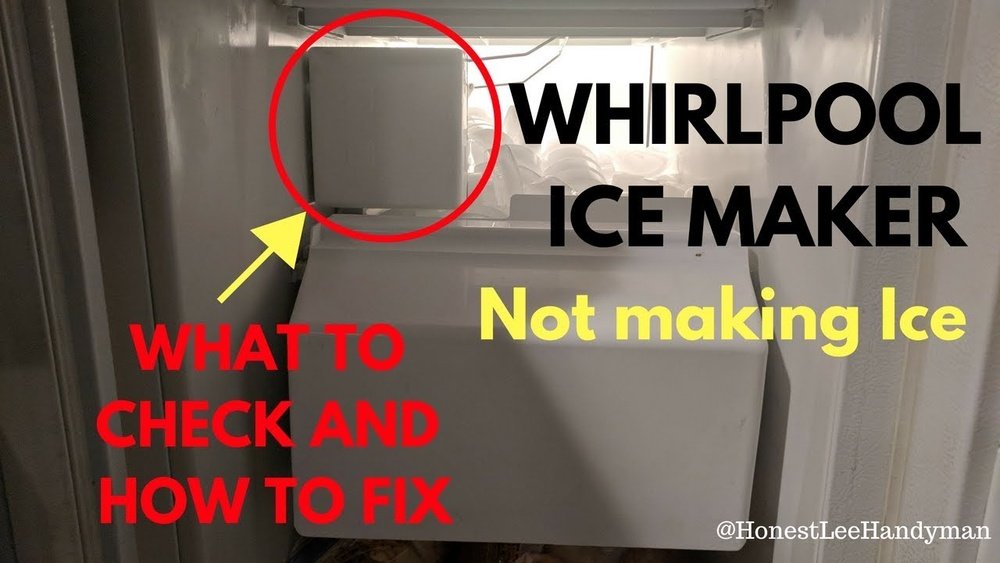

1. Ice Maker Not Producing Ice
If no ice is being made, the dispenser has nothing to give. Common causes include:
- Water supply problem (clogged filter, frozen line, or shut-off valve closed)
- Faulty ice maker assembly
- Incorrect temperature settings (freezer too warm)
2. Ice Bin Or Chute Is Jammed
Ice jams are a frequent problem. Small pieces can freeze together, blocking the auger or chute. Humidity can cause clumping, especially if the freezer is opened often.
3. Faulty Dispenser Motor
The auger motor spins the spiral inside the bin to push ice forward. If it fails, the ice stays put. Signs of a bad motor include a humming sound but no movement or total silence when pressing the dispenser lever.
4. Dispenser Switch Or Control Board Failure
The dispenser switch starts the motor when pressed. If it breaks, nothing happens. Sometimes, the control board that manages the system can fail, causing unresponsive controls.
5. Door Switch Problem
A door switch makes sure the dispenser only works when the fridge door is closed. If the switch fails, the system stays off for safety.
6. Ice Bucket Not Seated Properly
If the ice bucket isn’t pushed in all the way, the dispenser may not engage. This is a simple but often-overlooked issue.
7. Dispenser Lock Is On
Many Whirlpool models have a dispenser lock feature to prevent accidental use. If activated, the dispenser won’t work until unlocked.
Troubleshooting Steps For A Non-working Ice Dispenser
Solving the problem step by step helps you find the exact cause. Always unplug your fridge or turn off the circuit breaker before handling electrical parts.
Step 1: Check The Basics
- Is the fridge plugged in and working?
- Is the freezer cold enough (0°F or -18°C)?
- Is the ice maker turned on?
- Is the dispenser lock feature off? (Look for a lock symbol or check the user manual.)
Step 2: Inspect The Ice Bin And Chute
- Remove the ice bucket and check for clumped ice.
- Break up any stuck ice with a plastic utensil (never metal).
- Check the chute for blockages.
Step 3: Test The Dispenser Motor
- Hold the dispenser lever and listen for noise. A humming sound with no movement often means the motor is jammed or faulty.
- If silent, the switch or control board might be the issue.
Step 4: Examine The Door Switch
- Open the fridge door and press the small switch on the frame.
- With the switch pressed (simulating a closed door), try the dispenser.
- If it works, the switch is fine. If not, the door switch may need replacement.
Step 5: Check The Water Supply
- Make sure the water line is connected and not kinked.
- Replace the water filter if it’s clogged or overdue.
- Try dispensing water—if water doesn’t flow, the supply may be blocked.
Step 6: Inspect The Auger And Ice Bucket
- Remove the ice bucket and turn the auger by hand. It should spin freely.
- If stuck or broken, the auger assembly may need repair.
Step 7: Reset The Control Board
- Unplug the refrigerator for 5 minutes to reset the electronics.
- Plug it back in and test the dispenser.
When To Call A Professional
Some repairs are best left to experts. If you’ve tried the steps above and the Whirlpool ice dispenser is still not working, consider calling a qualified technician, especially if:
- You suspect a control board or wiring fault.
- The motor needs replacement.
- The issue involves the ice maker assembly itself.
Attempting complex repairs without proper knowledge can cause more damage or safety risks.
Credit: www.reddit.com
Whirlpool Ice Dispenser Parts: What Each One Does
Understanding the main parts can help you pinpoint issues faster. Here’s a handy overview:
| Part | Function | Common Failure Sign |
|---|---|---|
| Ice Maker Assembly | Makes the ice cubes | No ice production |
| Ice Bin | Stores ice; feeds dispenser | Loose or clumped ice |
| Auger Motor | Moves ice toward chute | Motor noise, no ice dispensed |
| Dispenser Switch | Activates the auger motor | No response when pressed |
| Dispenser Chute Flap | Opens to release ice | Ice stuck in chute |
| Control Board | Coordinates system | Unresponsive controls |
How To Prevent Whirlpool Ice Dispenser Problems
Regular care can keep your ice dispenser running smoothly. Here are some simple steps:
- Change the water filter every 6 months or as recommended.
- Keep the ice bin clean and dry—remove and wash it with warm water monthly.
- Check the freezer temperature—keep it at 0°F (-18°C).
- Don’t overload the bin—too much ice can jam the auger.
- Open the freezer door less often to reduce humidity and clumping.
- Use the dispenser regularly—this keeps ice fresh and prevents jams.
Credit: www.youtube.com
Real-life Example: Fixing A Jammed Whirlpool Ice Dispenser
Linda from Dallas noticed her Whirlpool ice dispenser stopped working. At first, she thought the system was broken. After removing the ice bin, she found a block of ice stuck near the auger. She dumped the ice, washed the bin with warm water, dried it, and placed it back. The dispenser worked perfectly again.
This shows how simple maintenance can fix what seems like a big problem.
Whirlpool Vs. Other Brands: Ice Dispenser Reliability
How does Whirlpool compare to other major brands? Here’s a quick look:
| Brand | Average Ice Dispenser Failure Rate (3 Years) | Common Issues |
|---|---|---|
| Whirlpool | 7% | Jammed ice, motor failure |
| LG | 8% | Frozen chute, control issues |
| Samsung | 9% | Clumping, auger motor |
| GE | 10% | Clogs, water line freeze |
Whirlpool ranks well for ice dispenser reliability, but all brands can develop problems if not maintained.
Credit: www.nelaappliancerepair.com
Two Common Mistakes People Make
- Ignoring the dispenser lock: Many users forget about the lock feature and think the system is broken when it’s just locked.
- Not replacing the water filter: A clogged filter can block water flow, stopping ice production and dispenser function.
These small oversights cause many unnecessary service calls.
Advanced Tips For Smooth Ice Dispensing
- If you live in a humid area, put a box of baking soda in the freezer to absorb moisture and reduce ice clumping.
- When leaving home for a week or more, empty the ice bin to prevent stale or fused ice.
When A Whirlpool Recall Or Service Bulletin Might Matter
Occasionally, Whirlpool issues recalls or service bulletins for certain models. Check your model number on the official Whirlpool website if you suspect a design fault or recurring issue. Sometimes, repairs can be done for free if your unit is covered.
For more on how ice makers work, see this resource: Wikipedia – Ice Maker.
Frequently Asked Questions
Why Is My Whirlpool Ice Dispenser Only Dispensing Crushed Ice, Not Cubes?
This often happens if the ice bucket is not seated correctly or if the “crushed” setting is on. Remove the bin, reinstall it, and check the controls. Also, check if some ice is stuck near the blades, forcing the auger to crush all ice.
How Do I Reset My Whirlpool Refrigerator’s Ice Dispenser?
Unplug the fridge for 5 minutes to reset the control board. Plug it back in and test the dispenser. Some models also have a reset button—check your user manual.
Can A Bad Water Filter Cause The Ice Dispenser To Stop Working?
Yes, a clogged water filter can reduce or block water flow, stopping ice production. Replace the filter as recommended to keep the system working.
What Should I Do If I Hear The Motor Running But No Ice Comes Out?
This usually means an ice jam in the chute or bin. Remove the bin, clear any stuck ice, and check the auger for free movement. If the motor runs but the auger does not, the motor coupling may be broken.
How Often Should I Clean The Ice Bin?
Clean the ice bin every month. Wash with warm, soapy water, rinse, and dry thoroughly before putting it back. This prevents mold and keeps ice tasting fresh.
If your Whirlpool ice dispenser is not working, don’t panic. Most problems are simple and can be fixed with basic steps. Regular maintenance and careful use will keep your dispenser running smoothly for years. If you still have trouble, don’t hesitate to call a professional—it’s better to fix the problem early than risk further damage.
